Product model: FY-M91 and FY-M91G, suffix with G for the band GPS function, suffix no G for no satellite synchronization function.
Product Overview
By receiving the satellite signal, the satellite synchronous offline master control can realize the global synchronization between multiple controllers, and the offline can be stored with 120000 points, SD card, which can meet the needs of customers to realize the synchronization of multiple controllers in the case of multi-building space can not be connected.
1.1 Functional characteristics
1.1.1 satellite synchronization offline main control support GPS satellite synchronization function.
1.1.2 support offline output 120000 points.
1.1.3 support large capacity SD card, can store multiple effect files, long playback time and support storage device hot-plug.
1.1.4 satellite synchronous offline solution, you can replace any control device in project maintenance without any parameter reset.
1.1.5 satellite synchronous offline system supports various drive chip lamps.
1.1.6 Satellite Synchronous Offline System supports multiple video file formats: RMVB,: FLV, MPEG1/2/4, AVI, WMV9, H.264, MOV, MKV, MP4, VOB, etc.

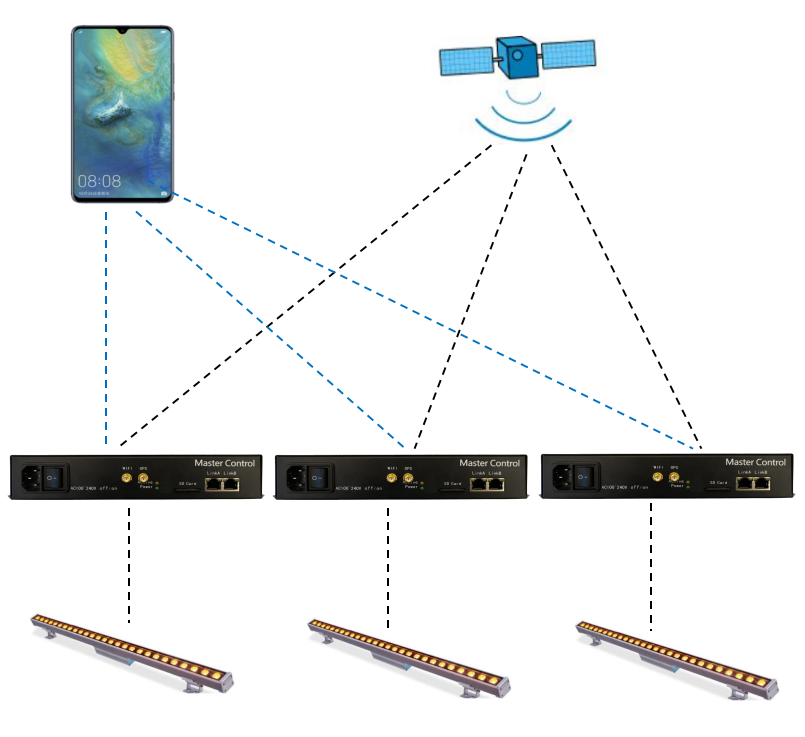

Control system data pattern description
Multi-card and data mode: each satellite synchronous control system SD the same card data, the total number of points of the whole synchronization project is less than 120000 points.
Such as 3 satellite synchronization systems, each with 6 controllers. The serial number of the first controller connected is set to 1, the first controller connected to the second is 7, and so on)
Multi-card data mode: the offline file is decomposed by data segmentation software, each SD card stores its own separate data, and the total number of points of a single satellite synchronization system is less than 120000 points.
