Transparent LED Display
Ultra-transparency/High brightness
Ultra-transparency: 85% transparency
High brightness: 5500cd/s.q.m available

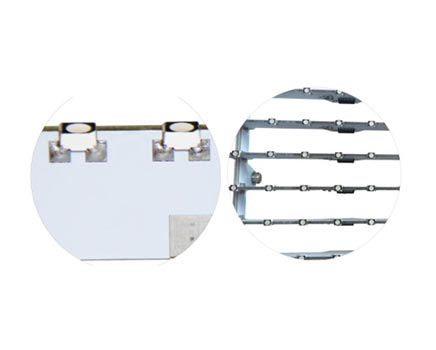

Stable LED

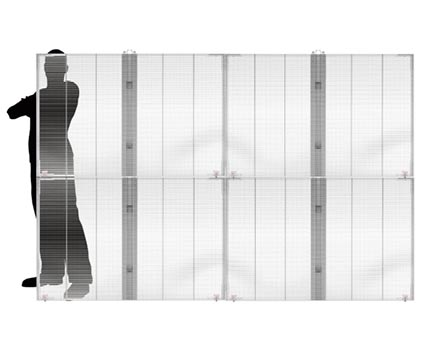

Compact design and Light weight
The weight is just 8kg/㎡,light and thin design leads to
a compact product that saves on shipping and storage costs.

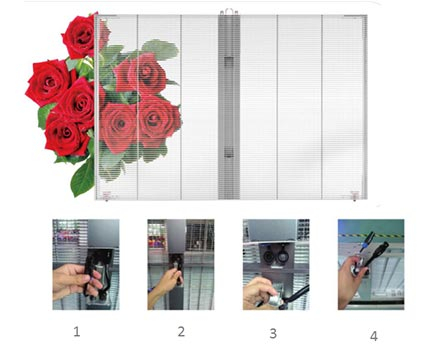

Fast Installation and Maintenance
Using fast lock to fix the cabinet quickly
Saving installation time and cost
Specification
Ultra-transparency/High brightness
Ultra-transparency: 85% transparency
High brightness: 5500cd/s.q.m available
Stable LED
Compact design and Light weight
The weight is just 8kg/㎡,light and thin design leads to
a compact product that saves on shipping and storage costs.
Fast Installation and Maintenance
Using fast lock to fix the cabinet quickly
Saving installation time and cost
Specification
| Pixel Pitch | 3.91-7.81mm | 7.81 |
| SMD | SMD1921 | SMD1921 |
| Scan Mode | 1/16 | 1/8 |
| Module Resolution | 128*32dots | 96*48dots |
| Module Pixel | 8192dots | 4608dots |
| Cabinet Size(WXH) | 1000*500mm | 1000*500mm |
| Cabinet Resolution | 256*64dots | 192*96dots |
| Transparency Rate | ≥85％ | ≥90％ |
| Module Quantity | 4pcs | 4pcs |
| Pixel Density | 32768 dots/㎡ | 16384 dots/㎡ |
| Cabinet Material | Aluminum Profile | Aluminum Profile |
| Cabinet Weight | 7KG | 7KG |
| Brightness | 2500cd/㎡ | 2500cd/㎡ |
| View Angle | H140°，V140° | H140°，V140° |
| View Distance | ≥4m | ≥8m |
| Grey Level | 16bit | 16bit |
| Refresh Rate | ＞1920HZ | ＞1920HZ |
| Frame Frequency | 60fps | 60fps |
| Input Voltage | AC100-240V/60Hz | AC100-240V/60Hz |
| Power consumption（Max/Avg） | 393/157W/㎡ | 393/157W/㎡ |
| Screen Weight | 9.5kg/㎡ | 9.5kg/㎡ |
| MTBF | >10,000 hours | >10,000 hours |
| IP Grade | IP43 | IP43 |
| Operating Temperature | ﹣20℃～+60℃or﹣40℃～+60℃ | ﹣20℃～+60℃or﹣40℃～+60℃ |
| Operating humidity | 10%-85%RH | 10%-85%RH |
| Control System | Linsn, NovaStar | Linsn, NovaStar |
