Rental LED Display

  Rental LED Display    |      2021-07-21
Rental LED Display

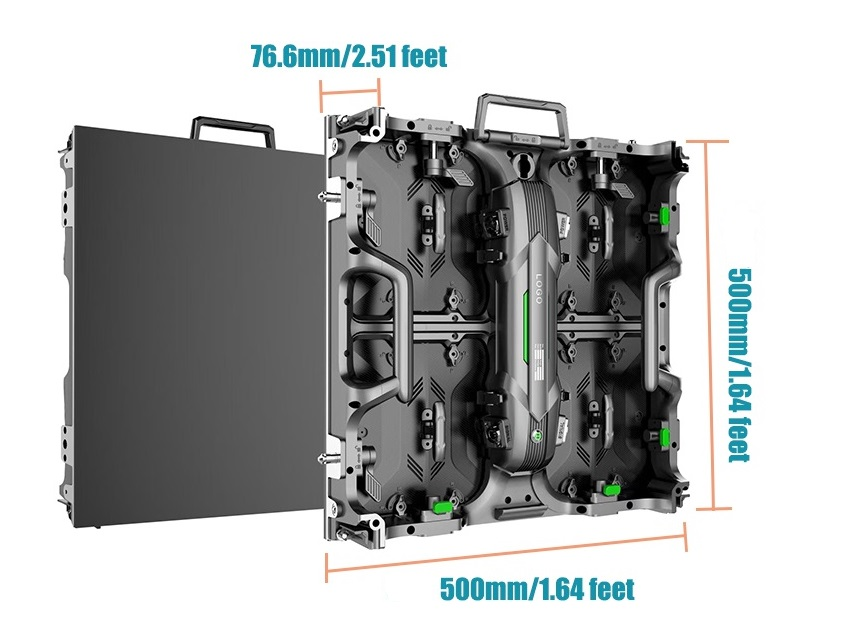

500mmx500mm Cabinet, Ultra lightweight, Slim design

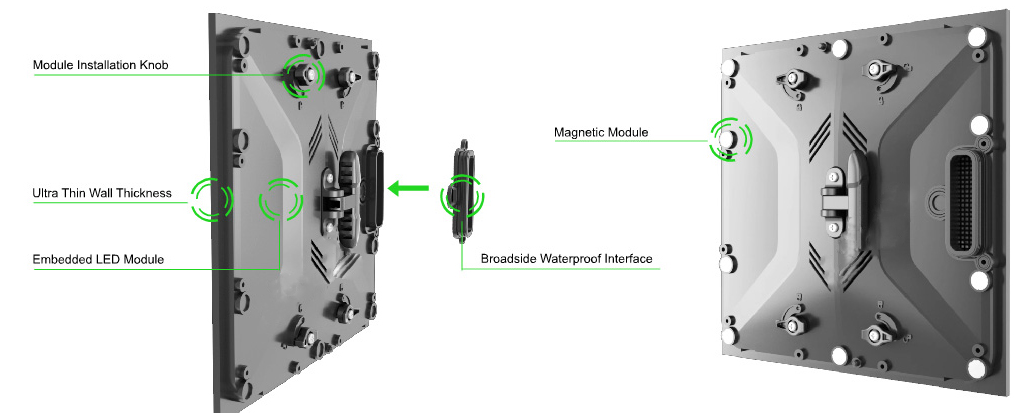

Module with magnets, Front & Back Service



Detachable Back Cover, High Waterproof

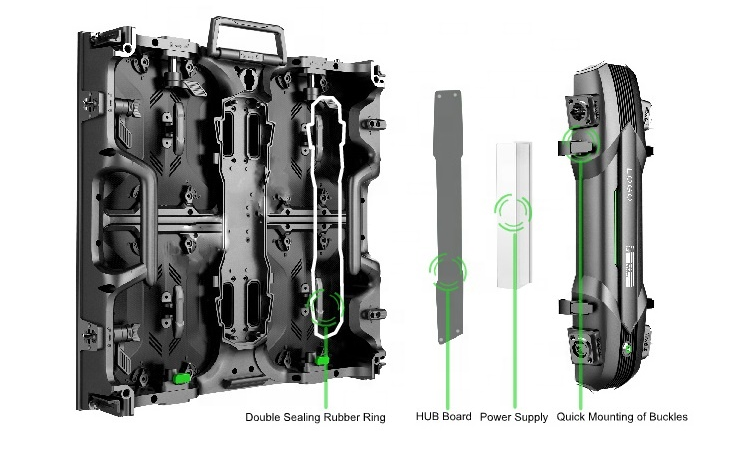

Hard Connection Design with detachable Power box and HUB Board,
High IP65 Waterproof with Double Sealing Rubber Ring,
Quick Mounting of Buckles for assemble and disassemble of back cover.

Curved Design
Concave or convex by -10 degrees to +10 degrees

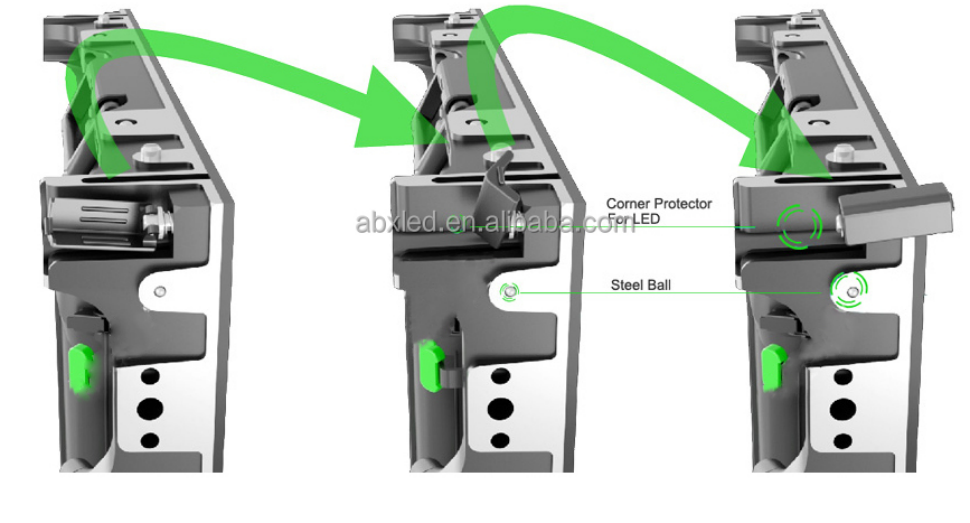

Corner Protection


Specification
ITEM MODEL P2.6 P2.9 P3.9 P3.9 P4.8
LAMP LED Type SMD2020 SMD1921
MODULE Pixel pitch 2.604mm 2.976mm 3.91mm 3.91mm 4.81mm
LED module size 250×250mm 250×250mm
Resolution(H×W) 96×96 84×84 64×64 64×64 52x52
CABINET LED module layout(H×W) 2×2 2×2
Resolution(H×W) 192×192 168×168 128×128 128×128 104x104
Display area 0.25m² 0.25m²
Cabinet size 500×500×76mm 500×500×76mm
Net. weight/set 7.5KG 8KG
Ingress Protection Front IP30/Rear IP30 Front IP65/Back IP54
Power AC 240/100±10% AC 240/100±10%
Serviceability Front/Rear service Front/Rear service
DISPLAY Max.Power consumption 560W 520W 540W 690W 630W
Avg.Power consumption  186W 173W 180W 230W 210W
Viewing Angle(H/V) 160°/160°
Brightness 1000nits 900 nits 1100nits 5500nits 5000nits
Pixel density(pixel/m²) 147456 112896 65536
Contrast ratio 4,000:1 2,000:1
Temperature/ Humidity
(Operation/Storage)		 -10°C to +40°C; 10% to 90% -30°C to +60°C; 10% to 90%
Lifetime(50% brightness) 100,000hours 100,000hours
Processing 16bit 16bit
Colors 281trillion 281trillion
Refresh rate ≥1920Hz


Remark: 500x1000mm cabinet is available
