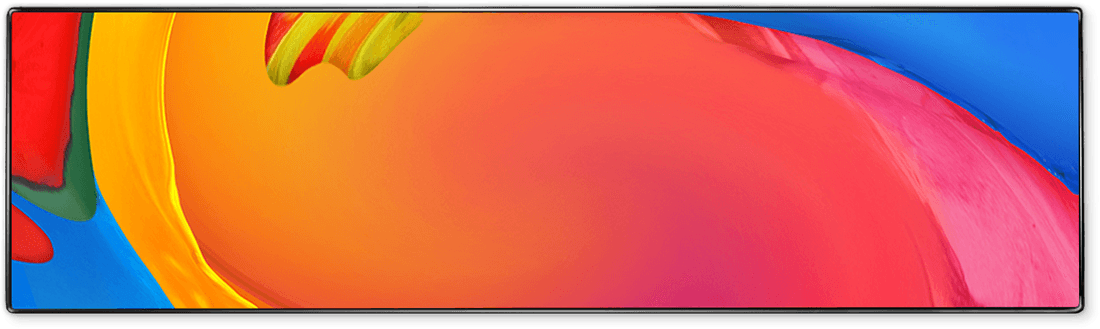

LED Poster
Slim appearance, attractive display
Eye-catching Images , Long Distance View
The screen size is 630mm x 2055mm x 42.6mm and is viewable from a distance of 20 meters
Delivering a magnificent visual experience
It has a high refresh rate of 3840Hz, 160°viewing angle maintains realistic color reproduction
even when looking from the sides.
Easy Operation
Can be operated by an Laptop, IOS or Android App.Easily change and save the content on the display from a phone in 10 seconds or less.
Multiple Installations
Suitable for hanging, wall-mounted, base-standing, bracket standing and creative installation.
Specification
Slim appearance, attractive display
Eye-catching Images , Long Distance View
The screen size is 630mm x 2055mm x 42.6mm and is viewable from a distance of 20 meters
Delivering a magnificent visual experience
It has a high refresh rate of 3840Hz, 160°viewing angle maintains realistic color reproduction
even when looking from the sides.
Easy Operation
Can be operated by an Laptop, IOS or Android App.Easily change and save the content on the display from a phone in 10 seconds or less.
Multiple Installations
Suitable for hanging, wall-mounted, base-standing, bracket standing and creative installation.
Specification
| ITEM | MODEL | P1.8 | P2.5 | P3.1 |
| LAMP | LED Type | SMD(1515) | SMD2020 | SMD2020 |
| MODULE | Pixel pitch | 1.875mm | 2.5mm | 3.125mm |
| LED module size | 300×202.5mm | 300×202.5mm | 300×202.5 | |
| Resolution(H×W) | 160×108 | 120×81 | 96×64 | |
| CABINET | LED module layout(H×W) | 2×10 | 2×10 | 2×10 |
| Resolution(H×W) | 320×1080 | 240×810 | 196x648 | |
| Display area | 1.215m² | |||
| Cabinet size | 630×2055×43.6mm | |||
| Net. weight/set | 39KG | |||
| Ingress Protection | Front IP30/Rear IP30 | |||
| Power | AC 240/100±10% | |||
| Serviceability | Front/Rear service | |||
| DISPLAY | Max.Power consumption | 520W | 600W | 600W |
| Avg.Power consumption | 140W | 200W | 200W | |
| Viewing Angle(H/V) | 160°/160° | 160°/160° | ||
| Brightness | 800nits | 800~9000 nits | 800~9000 nits | |
| Pixel density(pixel/m²) | 284444 | 160000 | 102400 | |
| Contrast ratio | 4,000:1 | |||
|
Temperature/ Humidity (Operation/Storage) |
-10°C to +40°C; 10% to 90% | |||
| Lifetime(50% brightness) | 100,000hours | |||
| Processing | 16bit | |||
| Colors | 281trillion | |||
| Refresh rate | ≥3840Hz | |||
