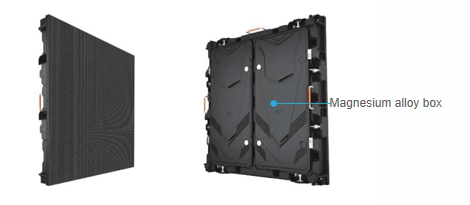

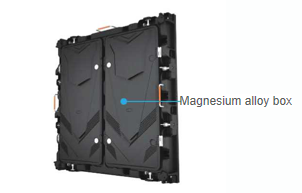

Outdoor SMD 960x960 Series

 Tip: Click on the picture to enlarge
1. flexible splicing: a variety of box size to meet the different screen size requirements;
2. high protection: military protection technology, can adapt to the harsh outdoor environment;
High consistency when 3. black screen: the best shell, mask design technology, so that the black screen can have high consistency, and after the spring, summer, autumn and winter still have a new screen flatness;
4. high contrast: anti-glare mask design, and special all-black surface treatment technology to achieve high contrast;
5. wide angle of view: the whole screen over 120 degrees viewing angle, so that the audience can enjoy the best display at any angle;
6. high gray level: low brightness environment display screen level and bright sense is better than the same kind of display screen, display screen more delicate;
High consistency of 7.: use the most professional correction equipment to adjust the uniformity of color and brightness of display screen to achieve perfect display effect.
Product model IL-TC4 IL-TC5 IL-TC6 IL-TC8 IL-TC10 IL-TC12
Pixel spacing (mm) 4 5 6.1538 8 10 12.308
pixel density (point/ m2) 62500 40000 26406 15625 10000 6601
Pixel composition 1R1G1B (SMD)
Module size (mm) 160*320 160*320 160*320 160*320 160*320 160*320
Module resolution (row X column) 40*80 32*64 26*52 20*40 16*32 13*26

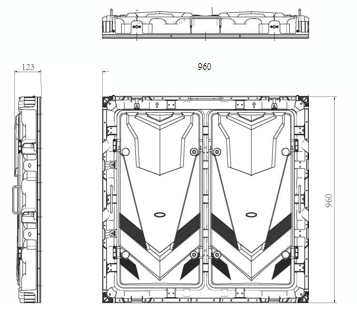

* Module size (mm) 960*960 960*960 960*960 960*960 960*960 960*960
:: Module resolution (row X column) 240*240 192*192 156*156 120*120 96*96 78*78
Flatness (mm) w0.5 w0.5 w0.5 w0.5 w0.5 w0.5
Car Volume (kg/m2) 33 33 33 33 33 33
:: Brightness (cd/m2) m4000 m5500 m5500 m6000 m6500 m6500
Color temperature 3000K-9300K adjustable
Perspective Level :140°
Vertical :120°
Level :140°
Vertical :120°
Level :140°
Vertical :120°
Level :140°
Vertical :120°
Level :140°
Vertical :120°
Level :140°
Vertical :120°
:: Contrast 3000:1 3000:1 3000:1 3000:1 3000:1 3000:1
Brightness/ chrominance correction Available
:: Peak power consumption (w/m2) W650 W650 W650 w650 w650 w650
:: Average power consumption (w/m2) W220 W220 W220 w220 w220 w220
Power supply requirements AC380V +15%50 Hz(3 cabinet 5 wire system)
Drive mode Constant current drive
Frame change frequency (Hz) 60
Refresh rate (Hz) m1920
Grayscale (bit) m14
Out of control <1/10000(discrete)
Average failure-free time m10000h
Typical Value of Luminous Tube Life m100000h
Control distance Super five types of network cable :<120 m, fiber: m10km
Signal compatibility CVBS,YUV,RGB,DVI,HDSDI,HDMI
Working/storage temperature Working temperature :10~+50°C; Storage temperature :20~+65
Work/storage humidity Working humidity :20%90% RH; Storage humidity :10%95% RH
Maintenance modality Former/post

Note :"*" is a typical value, parameters are for reference only, according to the specific circumstances of the project will change.
