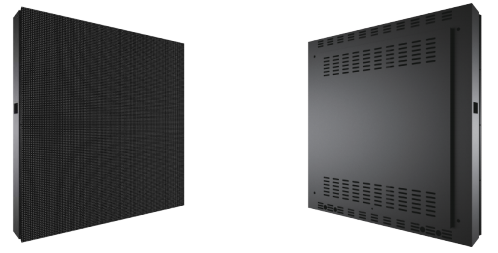

1. flexible splicing: a variety of box size to meet the different screen size requirements;
2. mute design: optimized hardware, structure design, no noise during operation;
3. low power design: high performance power supply and optimization circuit design, reduce power consumption, achieve energy conservation and environmental protection;
4. high contrast: anti-glare mask design, and special all-black surface treatment technology to achieve high contrast;
5. wide angle of view: the whole screen over 120 degrees viewing angle, so that the audience can enjoy the best display at any angle;
6. high gray level: low brightness environment display screen level and bright sense is better than the same kind of display screen, display screen more delicate;
7. high consistency: using the most professional correction equipment to adjust the uniformity of color and brightness of the display screen to achieve perfect display effect;
8. high refresh rate: the stability of the picture is high, in the high speed camera shooting state, the dynamic image will not appear black strip, the display effect is lifelike, the picture is delicate and smooth.
Product model | IL-TC3 | IL-TC4 | IL-TC5 | IL-TC6 | IL-TC8 | IL-TC10 |
Pixel spacing (mm) | 3 | 4 | 5 | 6 | 8 | 10 |
pixel density (point/ m2) | 62500 | 40000 | 27777 | 15625 | 10000 | |
Pixel composition | 1R1G1B (SMD) | |||||
Module size (mm) | 240*240 | 128*256 | 160*320 | 192*192 | 128*256 | 160*320 |
Module resolution (row X column) | 80*80 | 32*64 | 32*64 | 32*32 | 16*32 | 16*32 |

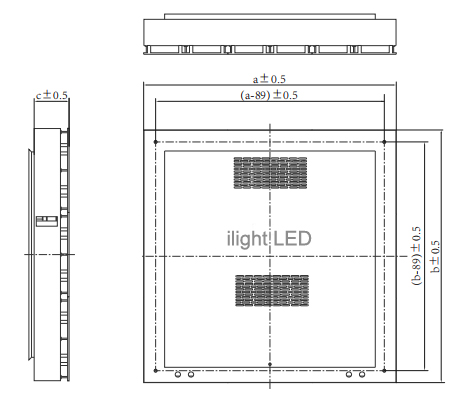

* Module size (mm) | 480*480 | 768*768 | 960*960 | 768*768 | 768*768 | 960*960 |
:: Module resolution (row X column) | 160*160 | 192*192 | 192*192 | 128*128 | 96*96 | 96*96 |
Flatness (mm) | w0.5 | w0.5 | w0.5 | w0.5 | w0.5 | w0.5 |
Weight (kg/m2) | w30 | w30 | w30 | w30 | w30 | w30 |
:: Brightness (cd/m2) | m1000 | m1000 | m900 | m800 | m1500 | m1500 |
Color temperature | 3000K-9300K adjustable | |||||
Perspective |
Level :140° Vertical :140° |
Level :140° Vertical :140° |
Level :140° Vertical :140° |
Level :140° Vertical :140° |
Level :140° Vertical :140° |
Level :140° Vertical :140° |
:: Contrast | 3000:1 | 3000:1 | 3000:1 | 3000:1 | 3000:1 | 3000:1 |
Brightness/ chrominance correction | Available | |||||
:: Peak power consumption (w/m2) | W650 | W650 | w500 | w400 | w300 | w300 |
:: Average power consumption (w/m2) | W220 | W220 | w167 | w134 | w100 | w100 |
Power supply requirements | AC380V +15%50 Hz( three-phase five-wire system) | |||||
Drive mode | Constant current drive | |||||
fr |
60 | |||||
Refresh rate (Hz) | m1920 | |||||
Grayscale (bit) | m14 | |||||
Out of control | <1/10000(discrete) | |||||
Average failure-free time | m10000h | |||||
Typical Value of Luminous Tube Life | m100000h | |||||
Control distance | Super five types of network cable :<120 m, fiber: m10km | |||||
Signal compatibility | CVBS,YUV,RGB,DVI,HDSDI,HDMI | |||||
Working/storage temperature | Working temperature :10~+50°C; Storage temperature :20~+65 | |||||
Work/storage humidity | Working humidity :20%90% RH; Storage humidity :10%95% RH | |||||
Maintenance modality | Former/post |
