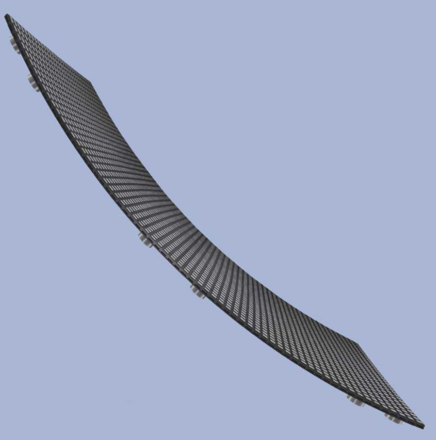

1. high curvature: can bend into any single surface modeling creative screen, the minimum curvature diameter can reach below Im;
2. easy maintenance: strong magnetic adsorption installation, direct adsorption, easy installation, easy maintenance;
3. ultra-thin: ultra-thin screen, light weight;
4. use SMD three-in-one technology, so that the LED screen in use with a greater perspective and better flatness;
5. high contrast, high refresh rate, clear image display;
| Name of name | Indoor Flexible Screen | ||||||||
| Product model | IL-TC1.25 | IL-TC1.5 | IL-TC1.875 | IL-TC2.5 | IL-TC3.81 | IL-TC4.76 | IL-TC5.4 | IL-TC6.3 | IL-TC9.5 |
| Pixel spacing (mm) | 1.25 | 1.5625 | 1.875 | 2.5 | 3.81 | 4.7625 | 5.4429 | 6.35 | 9.525 |
| pixel density (point/ m2) | 640000 | 409600 | 284444 | 160000 | 68889 | 44089 | 33755 | 24800 | 11022 |
| Pixel composition | 1R1G1B (SMD) | ||||||||

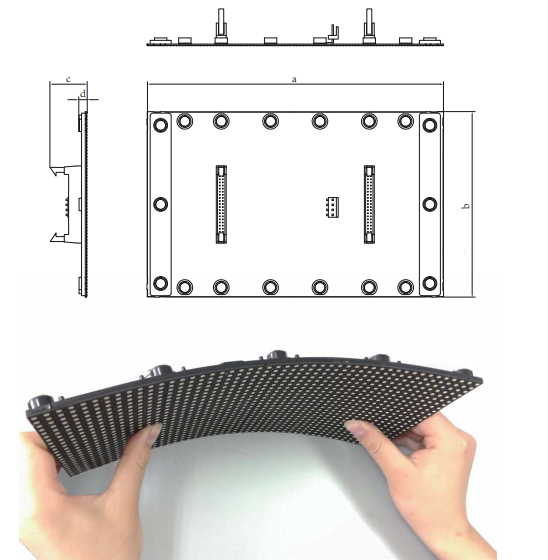

| Module size (mm) | 168.75*300 | 168.75*300 | 168.75*300 | 150*240 | 152.4*304.8 | 152.4*304.8 | 152.4*304.8 | 152.4*304.8 | 152.4*304.8 |
| Module resolution (row X column) | 135*240 | 108*192 | 90*160 | 60*96 | 40*80 | 32*64 | 28*56 | 24*48 | 16*32 |
| Flatness (mm) | W0.2 | W0.2 | W0.2 | W0.2 | w0.5 | w0.5 | w0.5 | w0.5 | w0.5 |
| Car Volume (kg/m2) | w30 | W30 | w30 | W30 | w30 | w30 | w30 | w30 | w30 |
| :: Brightness (cd/m2) | m800 | Art 00 | m800 | m800 | m1800 | m2200 | m2200 | m2200 | m2200 |
| Color temperature | 3000K-9300K adjustable | ||||||||
| Perspective | Level :120° | Level :120° | Level :120° | Level :120° | Level :120° | Level :120° | Level :120° | Level :120° | Level :120° |
| Vertical :120° | Vertical :120° | Vertical :120° | Vertical :120° | Vertical :120° | Vertical :120° | Vertical :120° | Vertical :120° | Vertical :120° | |
| :: Contrast | 3000：1 | 3000：1 | 3000：1 | 3000：1 | 3000：1 | 3000：1 | 3000：1 | 3000：1 | 3000：1 |
| Brightness/ chrominance correction | Available | ||||||||
| :: Peak power consumption (w/m2) | W650 | W650 | W650 | W650 | w500 | w500 | w350 | w350 | w350 |
| :: Average power consumption (w/m2) | W216 | W216 | W216 | W216 | w167 | w167 | w117 | w117 | w117 |
| Power supply requirements | AC380V +15%50 Hz(3 cabinet 5 wire system) | ||||||||
| Drive mode | Constant current drive | ||||||||
|
fr |
60 | ||||||||
| Refresh rate (Hz) | m1920 | ||||||||
| Grayscale (bit) | m14 | ||||||||
| Out of control | <1/10000(discrete) | ||||||||
| Average failure-free time | m10000h | ||||||||
| Typical life value of luminous tube | m100000h | ||||||||
| Control distance | Super five network lines | <120 m, Fiber: m10km | |||||||
| Signal compatibility | CVBS,YUV,RGB,DVI,HDSDI,HDMI | ||||||||
| Working/storage temperature | Working temperature :10~+50°C; Storage temperature :20~+65 | ||||||||
| Work/storage humidity | Working humidity :20%90% RH; Storage humidity :10%95% RH | ||||||||
| Maintenance modality | Pure | ||||||||
| Name of name | Outdoor Flexible Screen | ||
| Product model | IL-TC4.76 | IL-TC6.3 | IL-TC9.5 |
| Pixel spacing (mm) | 4.7625 | 6.35 | 9.525 |
| pixel density (point/ m2) | 44089 | 24800 | 11022 |
| Pixel composition | 1R1G1B (SMD) | ||
| Module size (mm) | 152.4*304.8 | 152.4*304.8 | 152.4*304.8 |
| Module resolution (row X column) | 32*64 | 24*48 | 16*32 |
| Flatness (mm) | w0.5 | w0.5 | w0.5 |
| Car Volume (kg/m2) | w35 | w35 | w35 |
| :: Brightness (cd/m2) | m6500 | m7000 | m7000 |
| Color temperature | 3000K-9300K adjustable | ||
| Perspective |
Level :120° Vertical :120° |
Level :120° Vertical :120° |
Level :120° Vertical :120° |
| :: Contrast | 3000：1 | 3000：1 | 3000：1 |
| Brightness/ chrominance correction | Available | ||
| :: Peak power consumption (w/m2) | w690 | W720 | W720 |
| :: Average power consumption (w/m2) | w230 | W240 | w240 |
| Power supply requirements | AC380V +15%50 Hz(3 cabinet 5 wire system) | ||
| Drive mode | Constant current drive | ||
|
fr |
60 | ||
| Refresh rate (Hz) | m1920 | ||
| Grayscale (bit) | m14 | ||
| Out of control | <1/10000(discrete) | ||
| Average failure-free time | m10000h | ||
| Typical Value of Luminous Tube Life | m100000h | ||
| Control distance | Super five types of network cable :<120 m, fiber: m10km | ||
| Signal compatibility | CVBS,YUV,RGB,DVI,HDSDI,HDMI | ||
| Working/storage temperature | Working temperature :10~+50°C; Storage temperature :20~+65 | ||
| Work/storage humidity | Working humidity :20%90% RH; Storage humidity :10%95% RH | ||
| Maintenance modality | Pure | ||
Note :"*" is a typical value, parameters are for reference only
